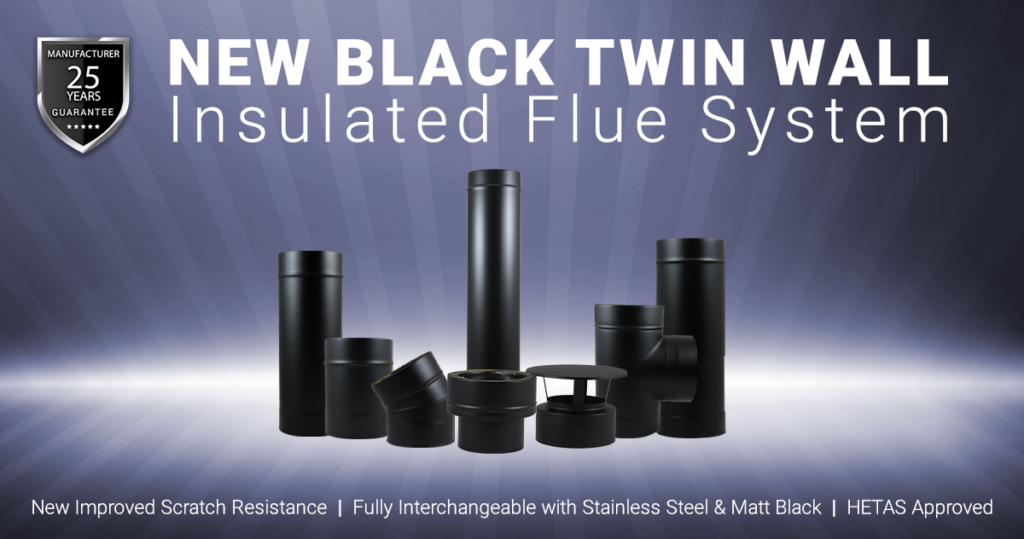

TITAN DW is a multi-fuel, twin wall insulated flue system is available in both Matt Black and Stainless-Steel finishes. It’s designed for a wide range of applications, including negative and positive pressure environments and condensing systems with joint seals.
Engineered for compatibility with all types of domestic, commercial, and industrial heating appliances for use with gas, oil, pellets, wood, or coal. TITAN DW can handle a constant working temperature of up to 600° C, with short bursts up to 700° C, and thermal shock resistance up to 1000° C.
Advantages of a Twin Wall Insulated Flue System
Twin wall insulated flues are an ideal solution for both new construction projects and renovations. They offer a straightforward, cost-effective, and efficient method for venting smoke and gases from interiors.
When installing a new heating appliance like a wood burning or multi fuel stove, a twin wall flue system is often necessary, especially if there is no chimney available.
These systems can be assembled to create a safe chimney for your appliance, featuring a simple push-fit joint system that makes installation quick and easy. Prefabricated in various shapes and sizes, the components can be mixed and matched to meet your specific needs.
Suitable for both indoor and outdoor applications, twin wall flues can pass through roofs and floors, making them versatile for use in boats, yurts, log cabins, van conversions, and garden offices.
Titan includes new and improved components such as a wider locking band for a more secure seal.
Key Features
- User-Friendly Installation: Simple open-ended push-fit jointing system, secured by a locking band.
- Aesthetic Design: 70 mm wide recessed locking band provides a sleek look.
- Enhanced Stability: 60 mm plugged-in joint with a wider locking band ensures better stability in horizontal runs.
- High-Quality Insulation: Homogenous 25 mm rigid rock wool insulation with a density of 120 kg/cubic meter.
- Continuous Insulation: No thermal bridge between the inner and outer steel cases.
- Safe Temperatures: Low outer case temperature.
- Heat Resistance: Operates at 600° C, tested for soot fires up to 1000° C.
- Durability: Free expansion of the inner flue liner ensures the flue’s integrity after a soot fire.
- Moisture Protection: Jointing system with capillary break prevents moisture ingress.
- Pressure Compatibility: Handles positive pressure up to 200 pa with joint seals designed for modern condensing appliances.
- Structural Support: Can be freestanding up to 3 meters above the last support, requires lateral support every 4 meters, and load-bearing support every 16 meters.
- Finish Options: Available in Matt Black or Stainless Steel.
Whether you’re embarking on a new build or renovating, the TITAN DW twin wall insulated flue system offers a reliable, aesthetically pleasing, and highly functional solution for all your venting needs.
View our product brochure for more information or call our friendly sales team on 0344 800 6586 Monday to Friday between 9am – 5pm for technical advice and trade prices.
